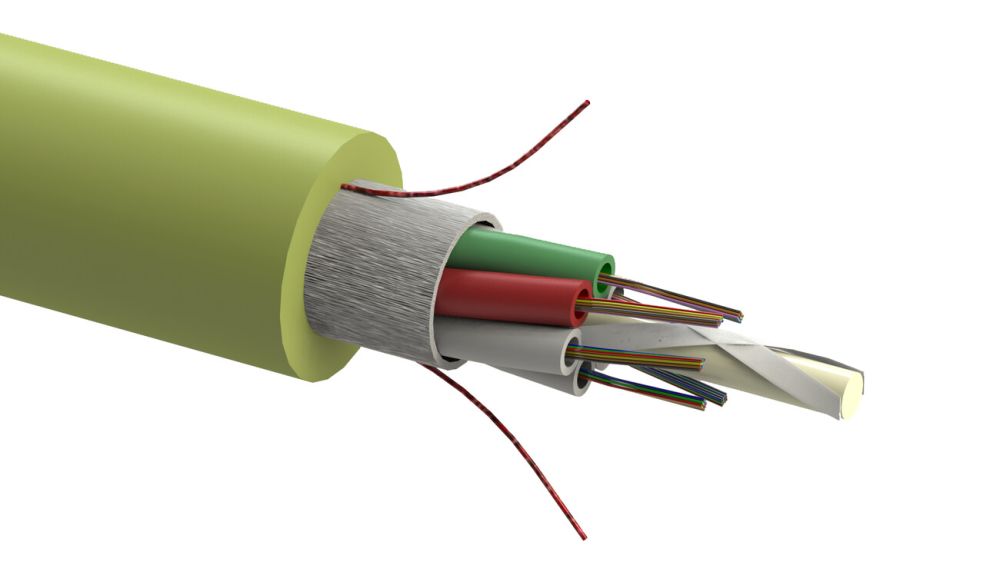

Stranded loose tube, gel-free cable, iRP-increased rodent protected, universal-use, UV.FRLSZH sheath – lime green, Cca, 6 x 12f = 72 fibers OM5

Article no:	R873741
EAN / GTIN:	7611821013730
Delivery Unit:	1
Unit of Measure:	Meter

Liên hệ đặt hàng

TP.HCM : 0858.322.744

Hà Nội : 0856.322.744

Thông tin sản phẩm

Thông tin kỹ thuật

Cáp ống rời không chứa gel, chống chuột và chống thấm nước theo chiều dọc, có tới 72 sợi trong 6 sợi xoắn, dùng để lắp đặt ống dẫn trong nhà hoặc ngoài trời (sử dụng phổ biến).

Cable family code	UTd6x2,3GF FiRis
Cable type	Stranded loose tube cable
Cable version	Gel-free installation cable
Cable application	universal use
CPR classification	Cca-s2,d1,a1
DoP number	D9089
Fiber type	OM5
Fiber count	72
Fiber color coding	1.-12.: red, green, blue, yellow, white, gray, brown, violet, turquoise, black, orange, pink
Fiber count per tube	12
Loose tube count	6
Loose tube diameter	2.3 mm
FRP/coat. CSM nominal thickness [mm]	2.5
Armor	powerful rodent protected
Outer sheath thickness	1.4 mm
Outer sheath material	UV stable FRLSZH
Outer sheath color	lime green
Sheath marking	Ink-Jet, black
Cable outer diameter	10.6 mm
Cable weight	120.0 kg/km / 80 lbs/1000ft
DIN / VDE 0888 code	U-BQ(ZN)BH nx2,3
Warranty	R&Mfreenet
Expected lifetime	min. 30 years
CPR test method	EN 50575, EN 13501-6
Standard put-up length on drum	2’100 m ± 5%
CPR classification	Cca
Minimum bending radius	no tension – 10 x cable diameter

Mechanical Data

In-service tensile strength	2200 N
In-service tensile strength acceptance criteria	Δα ≤ 0,05 dB
In-service tensile strength test method	IEC 60794-1-21:E1A
Installation tensile strength	4000 N
Installation tensile strength acceptance criteria	Δα ≤ 0,05 dB after test
Installation tensile strength test method	IEC 60794-1-21:E1A
Crush resistance long term	2000 N/100mm
Long-term crush resistance acceptance criteria	Δα ≤ 0,05 dB prior release, no damage
Long-term crush resistance test method	IEC 60794-1-21:E3A
Short-term crush resistance	4000 N/100mm
Short-term crush resistance acceptance criteria	Δα ≤ 0,05 dB after release, no damage
Short-term crush resistance test method	IEC 60794-1-21:E3A
Impact resistance	10 Nm, 3 impacts, d=20 mm, R=300 mm
Impact resistance acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Impact resistance test method	IEC 60794-1-21:E4
Torsion	L = 1 m, rotation angle ±180°, 10 cycles
Torsion acceptance criteria	no damage
Torsion test method	IEC 60794-1-21:E7
Repeated bending	R=20 x cable diameter, 25 cycles
Repeated bending acceptance criteria	no damage
Repeated bending test method	IEC 60794-1-21:E6
Cable bend	d=20 x cable diameter, 4 turns, 3 cycles
Cable bend acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Cable bend test method	IEC 60794-1-21:E11A
Minimum bend radius in service	160 mm
Minimum bend radius during installation	215 mm
Loose-tube colour coding	1.red, 2.green – on each layer, rest of tubes white (fillers uncolored or black)

Environmental Characteristics

Temperature cycling	-40 °C +70 °C / -40 °F +158 °F
Temperature cycling acceptance criteria	Δα ≤ 0,05 dB
Temperature cycling test method	IEC 60794-1-22:F1
Operation temperature	-40 °C to +70 °C / -40 °F to +158 °F
Storage / Transport temperature	-40 °C to +70 °C / -40 °F to +158 °F
Water penetration	L = 3 m, h = 1 m, 24 h
Water penetration acceptance criteria	no water leakage
Water penetration test method	IEC 60794-1-22 F5B
Thermal load	2 MJ/m
Flammability vertical single cable	Pass
Flammability vertical single cable test method	IEC 60332-1-2
Flammability vertical cable bundle	Pass
Flammability vertical cable bundle test method	IEC 60332-3-22
Smoke density	Pass
Smoke density test method	IEC 61034-2
Halogen free, acid gases	Pass
Halogen free, acid gases test method	IEC 60754-2
2015 / 863 / EU – RoHS 3	conform
